Blustream UEX3C-KIT USB 3.2 Gen1 Extender, 100m Range
UEX3C-KIT | 6E-UEX3CKIT
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

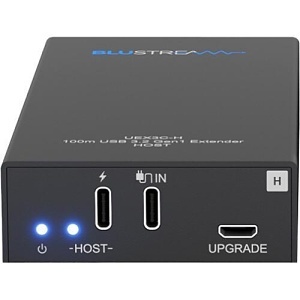

The UEX3C-KIT is a USB extender kit utilising HDBaseT technology to extend USB 3.2 Gen1 signals up to 100m over a single CAT6A cable. The UEX3C-KIT allows up to 2 USB devices to be connected to a single USB host with support for a transmission data bandwidth up to 5Gbps. The UEX3C-KIT is backwards compatible with USB 2.0 and 1.1 devices and provides bi-directional Power over Cable (PoC).
Main Features
- Supports USB 3.2 signal extension up to 100m
- Backwards compatible with USB 2.0 and 1.1 devices
- USB3.2 Gen1 data transfer rate up to 5Gbps
- Provides up to 2.5A combined power to USB devices (up to 1.7A per single USB port)
- Configurable USB device power management via API commands
- Bi-directional PoC (Power over Cable) to power extenders from either the host or device unit
General Information
Name: Blustream UEX3C-KIT USB 3.2 Gen1 Extender, 100m Range
Category: Blustream, Pro AV, Commercial Connector Cables, Pro Cable Adapters
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 6E-UEX3CKIT Brand Name Blustream Manufacturer Part Number UEX3C-KIT
