Altronix AL1012ACMJ220 10A 12VDC Power Supply with ACM8 Junction Enclosure, 220V
AL1012ACMJ220|AX-AL1012220
Altronix AL1012ACMJ220 10A 12VDC Power Supply with ACM8 Junction Enclosure, 220V
AL1012ACMJ220|AX-AL1012220
Altronix
Altronix AL1012ACMJ220 10A 12VDC Power Supply with ACM8 Junction Enclosure, 220V
AL1012ACMJ220 | AX-AL1012220
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

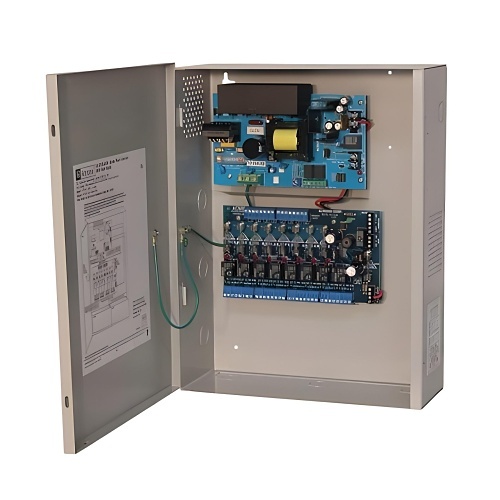

Introducing the Altronix AL1012ACMJ220, a powerful solution designed to efficiently distribute and manage power for access control systems. This unit transforms a 220VAC 50/60Hz input into eight independently controlled outputs, offering both 12VDC and 24VDC options, all protected by fuses. The outputs can be easily converted to dry form “C” contacts, ensuring compatibility with various access control devices such as mag locks, electric strikes, and more. With its robust design and versatile functionality, the Altronix AL1012ACMJ220 is the ideal choice for enhancing your security systems. Don't miss out on this essential component—order yours today!
Main Features
- Eight (8) independently controlled outputs
- Eight (8) auxiliary power outputs (unswitched)
- Output fuses are rated at 3.5A
- Filtered and electronically regulated outputs
- Supervision- AC Fail, Battery Fail and Battery Presence
- Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the eight (8) outputs
- Alarm output relay indicates that FACP input is triggered
General Information
Name: Altronix AL1012ACMJ220 10A 12VDC Power Supply with ACM8 Junction Enclosure, 220V
Category: Altronix, Batteries & Power Supplies, Power Supplies & Boards, Access Power Controllers
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number AX-AL1012220 Brand Name Altronix Manufacturer Altronix Corporation Manufacturer Part Number AL1012ACMJ220 Product Line ACM Product Model AL1012ACMJ220 Product Name AL1012ACMJ220 Altronix 8 Channel 10Amp 24VDC Access Control Power Supply in UL Listed NEMA 1 Indoor 12.25” W x 15.5” H x 4.5” D Steel Electrical Enclosure Product Series ACM220 Product Type Power Supply Sector Access Control Weight 14.1lb
Number of Doors 8 Output Voltage 12V DC
NDAA Compliant Yes
Depth 4.625" Height 18" Width 14.5"
Input Voltage 220V AC Output Current 10A
Limited Warranty Lifetime
Country of Origin US
