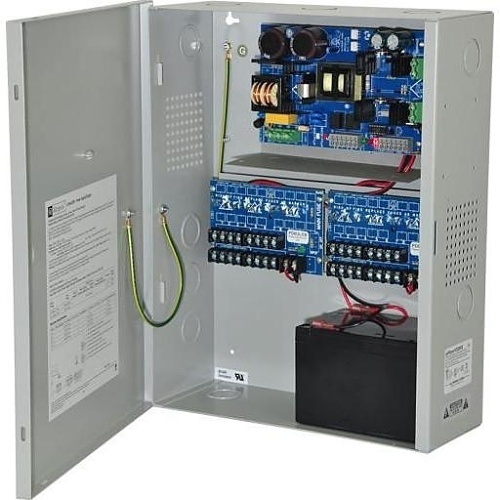

Altronix EFLOW102NX16DV Power Supply Charger, 16 PTC Class 2 Outputs, 12VDC at 10A, Aux Output, FAI, LinQ2 Ready, 220VAC, BC400 Enclosure
EFLOW102NX16DV|AX-EFLOW16DV
Altronix EFLOW102NX16DV Power Supply Charger, 16 PTC Class 2 Outputs, 12VDC at 10A, Aux Output, FAI, LinQ2 Ready, 220VAC, BC400 Enclosure
EFLOW102NX16DV|AX-EFLOW16DV
Altronix
Altronix EFLOW102NX16DV Power Supply Charger, 16 PTC Class 2 Outputs, 12VDC at 10A, Aux Output, FAI, LinQ2 Ready, 220VAC, BC400 Enclosure
EFLOW102NX16DV | AX-EFLOW16DV
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Introducing the Altronix EFLOW102NX16DV Power Supply Charger, designed to efficiently convert 220V AC into sixteen PTC protected 12V DC outputs, delivering a robust total of 10A. This versatile unit features an additional unswitched auxiliary output, making it ideal for various applications. Safety is paramount with built-in fire alarm disconnect, overvoltage protection, and low power disconnect to safeguard your standby batteries from deep discharge. Perfect for both commercial and residential use, this power supply is LinQ2 ready and housed in a durable BC400 enclosure. Upgrade your power solutions today with the Altronix EFLOW102NX16DV!
Main Features
- Available with 1, 8 or 16 outputs
- Fused or PTC ptotected outputs
- Additional Aux. Output rated at 1A
- Overvoltage protection
- Fire alarm disconnect
- Supervision AC Fail, Battery Fail and Battery Presence, Low power shutdown
- Built-in charger for sealed lead acid or gel type batteries
- Instantaneous transfer to stand-by batteries
- Short circuit and overload protection
- AC input and DC output LED indicators
General Information
Name: Altronix EFLOW102NX16DV Power Supply Charger, 16 PTC Class 2 Outputs, 12VDC at 10A, Aux Output, FAI, LinQ2 Ready, 220VAC, BC400 Enclosure
Category: Altronix, Batteries & Power Supplies, Power Supplies & Boards, Access Power Controllers
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number AX-EFLOW16DV Brand Name Altronix Manufacturer Altronix Corporation Manufacturer Part Number EFLOW102NX16DV Product Line eFlow Product Model EFLOW102NX16DV Product Name Power Supply Charger, 16 PTC Class 2 Outputs, 12V DC at 10A, Aux Output, FAI, LinQ2 Ready, 220V AC, BC400 Enclosure Product Type Power Supply Charger Sector Access Control Weight 8.75lb
Output Voltage 12V DC
NDAA Compliant Yes
Operating Temperature (T-T) 32-120°F Storage Temperature (T-T) -4-158°F
Depth 4.5" Height 15.5" Width 12.25"
Input Voltage 220V AC Output Current 1A|2A|10A
Limited Warranty Lifetime
Environmental Certification RoHS Indoor/Outdoor Indoor
