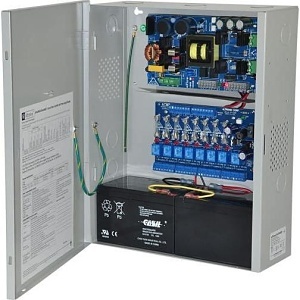

Altronix EFLOW104NA8V Power Supply with ACM8
EFLOW104NA8V | AX-EFLOW18V
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Introducing the Altronix EFLOW104NA8V, a versatile power supply designed to efficiently distribute and manage power for access control systems and accessories. This unit transforms a 220V AC input into eight independently controlled 24V DC outputs, each protected by fuses and capable of delivering a total of 10A continuous current. Ideal for various access control devices such as mag locks and electric strikes, it supports both fail-safe and fail-secure modes. The FACP interface allows for emergency egress and alarm monitoring, ensuring safety and reliability. Upgrade your security system with the Altronix EFLOW104NA8V today!
Main Features
- Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the eight (8) outputs
- Normally open (NO) or normally closed (NC) dry contact input
- Polarity reversal input from FACP signaling circuit.
- Alarm output relay indicates that FACP input is triggered (form "C" contact rated at 1A 28V DC not evaluated by UL)
- AC fail supervision (form "C" contacts)
- Battery fail & presence supervision (form "C" contacts)
- Low power shutdown. Shuts down DC output terminals if battery voltage drops below 70-75% (depending on the power supply). Prevents deep battery discharge
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails. Transfer to stand-by battery power is instantaneous with no interruption
- Zero voltage drop when unit switches over to battery backup (AC failure condition)
General Information
Name: Altronix EFLOW104NA8V Power Supply with ACM8
Category: Altronix, Batteries & Power Supplies, Power Supplies & Boards, Access Power Controllers
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number AX-EFLOW18V Brand Name Altronix Manufacturer Altronix Corporation Manufacturer Part Number EFLOW104NA8V Product Line eFlow Product Model EFLOW104NA8V Product Name Access Power Controller With Power Supply/Charger, 8 Fused Relay Outputs, 24VDC at 10A, Aux Output, FAI, 220VAC, BC400 Enclosure Product Type Access Power Controller Sector Access Control Weight 8.9lb
Number of Doors 8 Output Voltage 24V DC
NDAA Compliant Yes
Operating Temperature (T-T) 32-120°F Storage Temperature (T-T) -4-158°F
Depth 4.5" Height 15.5" Width 12.25"
Input Voltage 220V AC
Limited Warranty Lifetime
Environmental Certification RoHS Features AC fail supervision (form "C" contacts), Alarm output relay indicates that FACP input is triggered (form "C" contact rated @ 1A 28VDC not evaluated by UL), Automatic switch over to stand-by battery when AC fails. Transfer to stand-by battery power is instantaneous with no interruption, Battery fail & presence supervision (form "C" contacts), Built-in charger for sealed lead acid or gel type batteries., Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the eight (8) outputs, Low power shutdown. Shuts down DC output terminals if battery voltage drops below 70-75% (depending on the power supply). Prevents deep battery discharge, Normally open (NO) or normally closed (NC) dry contact input, Polarity reversal input from FACP signaling circuit., Zero voltage drop when unit switches over to battery backup (AC failure condition) Indoor/Outdoor Indoor
