Product Overview

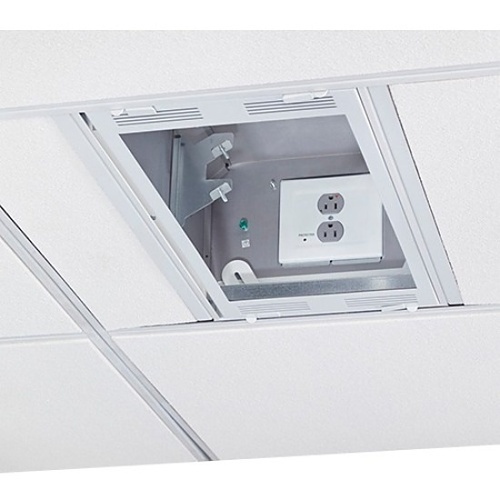

The CMS491P2 conceals AV equipment above a 2' X 2' ceiling tile to provide a clean professional look for classrooms and conference rooms.
Includes a high-performance, dual gang housing, isolated ground, dual receptacle outlet featuring the SurgeX® non-sacrificial multi-stage filtration and surge protection system. This protects equipment from disruptive high frequency noise and damage caused by power disturbances.
Chief's powered solutions were co-developed with SurgeX, a brand of AMETEK® Electronic Systems Protection.
Main Features
- Drop carriage door improves accessibility and serviceability providing full access to equipment
- Detachable power housing can be pre-installed with electricians on site and assembled to the storage boxat a later time
- Inside the plenum box or facing the room
- Up to 2 single gang or 1 dual gang outlet
- 4 nested knockouts for 1-1/4", 1", & ½" diameter conduit
- Built in ventilation
- AV tray supports a variety of AV components
- Ships with 1 shelf, 2nd shelf sold separately see CMSUNV1
- Overall weight capacity 100 lbs (45 kg)
- 50 lbs (22 kg) for projector ceiling plate
General Information
Name: Chief CMS491P2 Plenum Rated Storage Box 1' 2' with 2-Gang Filter and Surge
Category: Chief by Legrand, Pro AV, Commercial Video Conferencing, Video Conference Mounts & Accessories
UPC Code:
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number CJ-CMS491P2 Brand Name Chief by Legrand Manufacturer Legrand Group Manufacturer Part Number CMS491P2 Product Model CMS491P2 Product Name 1' x 2' Plenum Rated Storage Box with 2-Gang Filter & Surge Product Series CMS Product Type Storage Box
Device Supported Projector Maximum Load Capacity 99.21 lb
TAA Compliant No
Color White Depth 23.67" Dimensions 8 x 12.97 x 23.67" Height 8" Width 12.97"
Limited Warranty 10-Year
Certifications UL Listed Country of Origin US Package Contents - 1' x 2' Plenum Rated Storage Box with 2-Gang Filter & Surge
- Mounting Hardware
