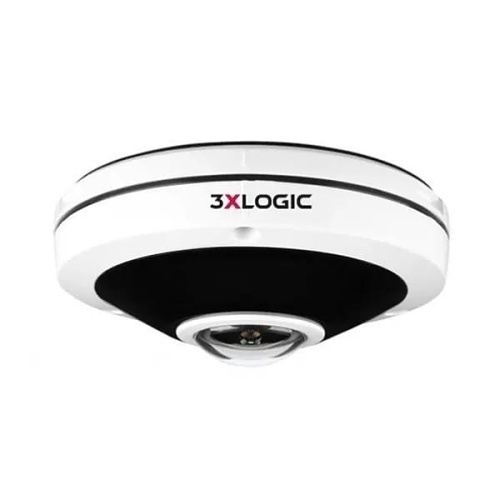

3xLOGIC VX-6M-360-IAW-S256 VISIX 6MP Outdoor Fisheye with IR, Audio with Microphone, Alarm I/O, and True WD, IP66/IK10 Rated with All-in-One Functionality and 256GB SD Card
VX-6M-360-IAW-S256|IA-VX6M360I2
3xLOGIC VX-6M-360-IAW-S256 VISIX 6MP Outdoor Fisheye with IR, Audio with Microphone, Alarm I/O, and True WD, IP66/IK10 Rated with All-in-One Functionality and 256GB SD Card
VX-6M-360-IAW-S256|IA-VX6M360I2
3xLOGIC
3xLOGIC VX-6M-360-IAW-S256 VISIX 6MP Outdoor Fisheye with IR, Audio with Microphone, Alarm I/O, and True WD, IP66/IK10 Rated with All-in-One Functionality and 256GB SD Card
VX-6M-360-IAW-S256 | IA-VX6M360I2
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
VISIX 6MP Outdoor Fisheye with IR, Audio with Microphone, Alarm I/O, and True WDR. IP66/IK10 Rated with All-in-One Functionality and 256GB SD Card.
Main Features
- 6MP (Fisheye / Dewarped)
- Infrared (Low-Light/No-Light)
- IK9 Impact / IP66 Weather Resistance
- H.264 Compression
- Wide Dynamic Range (WDR)
General Information
Name: 3xLOGIC VX-6M-360-IAW-S256 VISIX 6MP Outdoor Fisheye with IR, Audio with Microphone, Alarm I/O, and True WD, IP66/IK10 Rated with All-in-One Functionality and 256GB SD Card
Category: 3xLOGIC, Video Surveillance, IP Cameras, Panoramic Cameras
UPC Code:
Country of Origin: Vietnam. Country of origin is subject to change.
Specifications
ADI Part Number IA-VX6M360I2 Brand Name 3xLOGIC Manufacturer Part Number VX-6M-360-IAW-S256 Product Type Network Camera Weight 1.10 lb
Effective Camera Resolution 6MP Field of View Diagonal, Horizontal, Vertical Maximum Aperture f/2.5 Maximum Frame Rate 30 fps Minimum Focal Length 1.55 mm Night Vision Yes Night Vision Type Infrared Video Formats H.264, H.265, MJPEG Video Resolution Yes
Image Sensor Type CMOS
Ingress Protection Rating IP66
Maximum Video Resolution 2592 x 1944
Maximum Operating Temperature 122°F Minimum Operating Temperature -22°F Operating Humidity 0.9
Longest Shutter Speed 1/15 Second Minimum Illumination 0.06 lux Shortest Shutter Speed 1/32000 Second
Focal Length 1.55 mm Lens Included Yes Maximum Focal Length 1.55 mm
Remote Management Yes
Depth 4.9" Durability Impact Resistant Form Factor Fisheye Height 2.6"
Input Voltage 12V DC
Mount Type Ceiling Mount, Corner Mount, Junction Box Mount, Pendant Mount, Pole Mount, Wall Mount
Recording Formats HD Storage Type Memory Card
Limited Warranty 4 Year
Environmental Certification CE, FCC, UL Environmentally Friendly Yes Impact Protection Rating IK10 Indoor/Outdoor Outdoor
