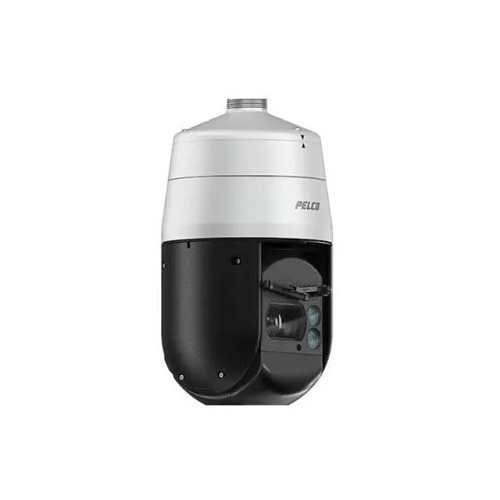

Pelco S7240L-PW Spectra Enhanced Outdoor IP IR PTZ Camera with 30X Lens
S7240L-PW|PE-S7240LPW
Pelco S7240L-PW Spectra Enhanced Outdoor IP IR PTZ Camera with 30X Lens
S7240L-PW|PE-S7240LPW
Pelco by Motorola Solutions
Pelco S7240L-PW Spectra Enhanced Outdoor IP IR PTZ Camera with 30X Lens
S7240L-PW | PE-S7240LPW
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The Pelco S7240L-PW is a 2MP outdoor PTZ IP security camera designed for high-speed surveillance and long-range monitoring. Equipped with a powerful 40x optical zoom lens, it delivers exceptional clarity and precise tracking of distant subjects. Featuring advanced SureVision technology, it offers up to 130 dB True Wide Dynamic Range (WDR) for superior image quality in high-contrast and low-light environments. With built-in infrared (IR) illumination extending up to 200 meters, this camera provides reliable nighttime monitoring. The rugged IP67-rated weatherproof and IK10 impact-resistant enclosure ensures durability in extreme outdoor conditions. Its laser focus assist enhances accuracy for tracking moving targets, making it ideal for critical infrastructure, transportation hubs and city surveillance. Additionally, the integrated wiper ensures clear visibility in rainy or dusty environments, maintaining optimal image quality.
Main Features
- 2MP x 30, 2MP x 40 or 4K x 20 to capture more details at distance
- Integrated Varizoom IR 200m to see in total darkness
- Laser Focus Assist
- Up to 8MP and up to 60 images per second (ips)
- Robust image stabilization (EIS with Gyro 4K x 20 and 2MP x 30, OIS 2MP x 40)
- Optical Image Stabilization (for the 2MP 40x model)
- Built-in Enhanced Analytics suite
- Pelco Advanced Analytics Suite powered by MSI Analytics
- Lookup tilt range +30° to see above the horizon
- Wiper for clear images in wet environments, available on some models
General Information
Name: Pelco S7240L-PW Spectra Enhanced Outdoor IP IR PTZ Camera with 30X Lens
Category: Pelco by Motorola Solutions, Video Surveillance, IP Cameras, PTZ Security Cameras
UPC Code: 700880352779
Country of Origin: Taiwan. Country of origin is subject to change.
Specifications
ADI Part Number PE-S7240LPW Brand Name Pelco by Motorola Solutions Manufacturer Part Number S7240L-PW Product Line Spectra Enhanced Product Series Enhanced 7
Effective Camera Resolution 2MP Field of View Horizontal Lens Type Varifocal Maximum Aperture f/2 Maximum Frame Rate 60 fps Minimum Focal Length 7 mm Optical Zoom 40x Video Formats H.264, H.265, MJPEG
Image Sensor Type CMOS Wide Dynamic Range Yes
Maximum Video Resolution 1920 x 1080
Maximum Operating Temperature 140°F Minimum Operating Temperature -60°F Operating Humidity 10-100%
Longest Shutter Speed 1/1 Second Minimum Illumination 0.1|0.0125|0.06|0.0075 lux Shortest Shutter Speed 1/10000 Second
Network (RJ-45) Yes
Focal Length 7-280 mm Lens Included Yes Maximum Focal Length 280 mm Minimum Aperture f/5
Color White
Input Voltage 24V AC, 48V DC, PoE
Storage Type Memory Card
Limited Warranty 5 Year
Environmental Certification BIS, CE, Class A, EAC, EN 50121-4 (Railway immunity), EN 50155 (EN 61373 Category 1, Class B), FCC, Class A, ICES-003, Class A, IEC 62676-5 data specifications and image quality performance for camera devices, IEC/EN 60529 (IP66, IP67), IEC/EN 60825-1 (Class 1 laser product for S7240L/S7820L only), IEC/EN 62262 Impact (IK10), KC, NEMA TS-2 para 2.2.7-2.2.9, NOM, RCM, Type 4X, UKCA, UL/cUL Listed, UL/IEC/EN 60950-1, 60950-22, 62368-1
