Pelco SMLE1-20V5-4H Sarix Multi Enhanced Analytics Camera Base Module, 4x5MP, WDR, 360 Degree Max Field of View, SureVision, 3.3-5.7mm
SMLE1-20V5-4H|PE-SML20V54H
Pelco SMLE1-20V5-4H Sarix Multi Enhanced Analytics Camera Base Module, 4x5MP, WDR, 360 Degree Max Field of View, SureVision, 3.3-5.7mm
SMLE1-20V5-4H|PE-SML20V54H
Pelco by Motorola Solutions
Pelco SMLE1-20V5-4H Sarix Multi Enhanced Analytics Camera Base Module, 4x5MP, WDR, 360 Degree Max Field of View, SureVision, 3.3-5.7mm
SMLE1-20V5-4H | PE-SML20V54H
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

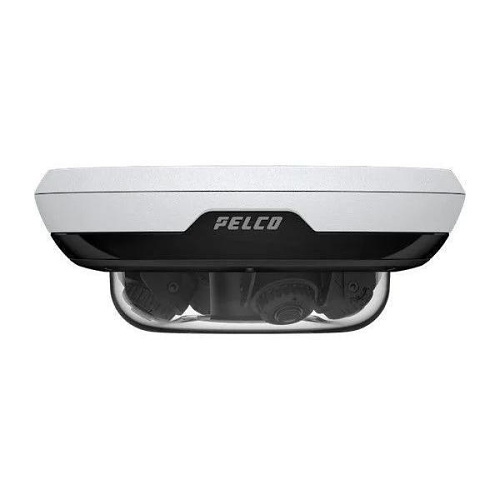

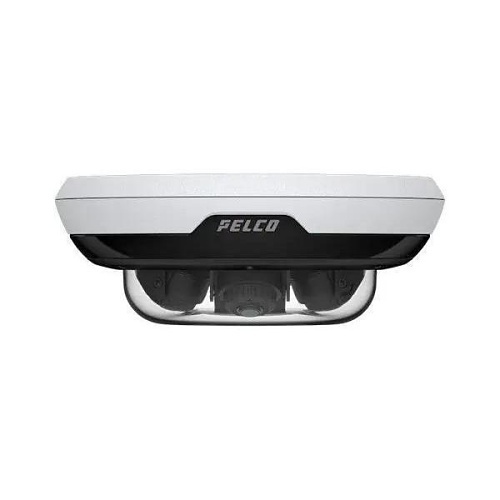

The Pelco Sarix Multi Enhanced camera delivers multi-directional coverage from a single vantage point, offering security teams exceptional situational awareness of wide areas using fewer cameras. This analytics-enabled camera helps to reduce blind spots and can take on the most difficult lighting conditions across vast areas, while providing high-quality, panoramic views.
Main Features
- Achieve 180, 270 or 360-degree views with the camera's three or four configurable sensors for full coverage and to reduce blind spots
- Stay a step ahead of critical events with built-in analytics providing improved object detection and classification
- Have greater flexibility with the ability to configure the field of view, allowing you to monitor and take a closer look at what's most relevant for the application
- Includes lens distortion correction for an optimal viewing experience
- Protects against impact, water and windblown dust with IK10 and IP66/67 ratings
- Resists corrosion with NEMA 250 Type 4X rating and meets TS2 standards
- Meet the high data security standards required by federal government agencies and heavily regulated enterprises with FIPS-compliant cryptography support, integrated TPM and Secure Boot
- ONVIF Profile S, G, T and M compliance allows for easy integration with existing ONVIF infrastructures
- Interoperable with Pelco VideoXpert and other leading video management systems
General Information
Name: Pelco SMLE1-20V5-4H Sarix Multi Enhanced Analytics Camera Base Module, 4x5MP, WDR, 360 Degree Max Field of View, SureVision, 3.3-5.7mm
Category: Pelco by Motorola Solutions, Video Surveillance, IP Cameras, Panoramic Cameras
UPC Code: 700880371244
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number PE-SML20V54H Brand Name Pelco by Motorola Solutions Manufacturer Part Number SMLE1-20V5-4H Product Line Sarix Product Series Sarix Multi Enhanced
Effective Camera Resolution 20MP Field of View Horizontal, Vertical Lens Type Varifocal Maximum Aperture f/1.5 Maximum Frame Rate 25 fps Minimum Focal Length 3.3 mm Night Vision Yes Night Vision Type Infrared (IR) Video Formats H.264, H.265, MJPEG
Image Sensor Type CMOS Night Vision Distance 98' Wide Dynamic Range Yes
Maximum Video Resolution 10368 x 1944
Maximum Operating Temperature 140°F Minimum Operating Temperature -40°F Operating Humidity 0-95%
Longest Shutter Speed 1/7.5 Second Minimum Illumination 0.020|0.018|0 lux Shortest Shutter Speed 1/8000 Second
Network (RJ-45) Yes
Focal Length 3.3-5.7 mm Lens Included Yes Maximum Focal Length 5.7 mm Minimum Aperture f/1.9
ADI Part Number Replaces PE-IMD20136 Model Number Replaces IMD20136
Input Voltage 24V AC, 24V DC
Storage Type Memory Card
Environmental Certification BIS, CE, cUL, KC, NOM, RCM, RoHS, UKCA, UL
