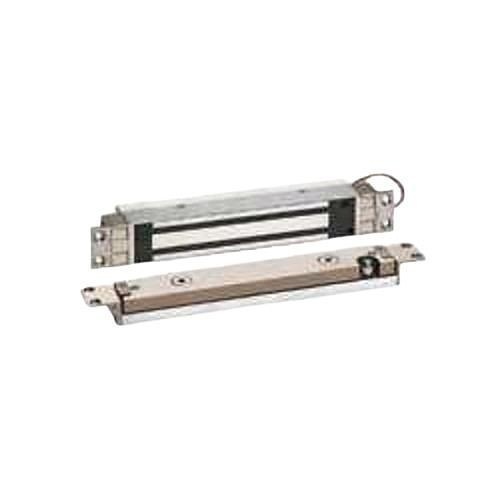

1565ITCD Hi / Shear Concealed EMLock, Door Position Switch, 1-5/8" Depth, 12/24VDC, 2700lbs Holding Force
1565ITCD|SZ-1565ITCD
1565ITCD Hi / Shear Concealed EMLock, Door Position Switch, 1-5/8" Depth, 12/24VDC, 2700lbs Holding Force
1565ITCD|SZ-1565ITCD
Security Door Controls
1565ITCD Hi / Shear Concealed EMLock, Door Position Switch, 1-5/8" Depth, 12/24VDC, 2700lbs Holding Force
1565ITCD | SZ-1565ITCD
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The SDC Hi/Shear is a totally concealed, high security, failsafe locking mechanism with superior appearance. The patented Hi/Shear electromagnetic lock design incorporates a floating armature assembly and special alloy steel locking tabs on both the lock and armature assemblies, that may be adjusted both vertically and laterally to compensate for wide door gaps and warped or misaligned doors. Hi/Shear magnetic locks are ideal for use on commercial grade hollow metal and wood doors and frames and Herculite doors with top rails.
Main Features
- Lateral and Vertical Alignment Adjustment
- BHMA Certified Holding Force
- ANSI/BHMA Grade 1 Conpliant
- Auto Sensing 12/24VDC Input
- Field Adjustable Shear Stops
- Door Static Sensor
- UL, CSFM, MEA Listed
- Door Position Sensor
- 1-5/8" depth for 1-3/4" to 2" frames
- Integrated electronics
General Information
Name: 1565ITCD Hi / Shear Concealed EMLock, Door Position Switch, 1-5/8" Depth, 12/24VDC, 2700lbs Holding Force
Category: Security Door Controls, Access Control, Locking Devices, Magnetic Locks
UPC Code: 712905251653
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number SZ-1565ITCD Brand Name Security Door Controls Manufacturer Part Number 1565ITCD
Input Voltage 12V, 24V
