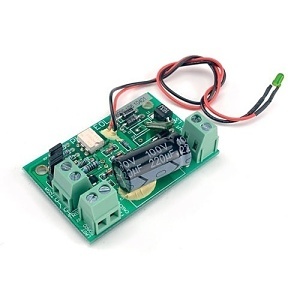

Bosch PLN-1EOL End-of-Line Supervision Board
PLN-1EOL | UV-PLN1EOL
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
A Plena end-of-line board is a PCB designed to detect the 20 kHz pilot tone generated by a supervised public address or voice alarm system. It activates a voltage free switch in the presence of a 20 kHz signal (pilot tone) above 5 V, as well as an LED for easy visual confirmation of operation. Functions Plena end-of-line boards monitor the presence of a pilot tone on a loudspeaker line. The board connects at the end of a loudspeaker line and detects the 20 kHz pilot tone signal. This signal is always present on the line: when back ground music (BGM) is playing, when a call is in progress, and when no signal is present. The 20 kHz tone is inaudible and at a very low level (-20dB). When the pilot tone signal is present, an LED lights up, and a contact on the board is closed. When the pilot tone fails, the contact opens, and the LED goes off. If mounted at the end of the loudspeaker line, this applies to the integrity of the whole line. Presence of the pilot tone signal does not depend on the number of loudspeakers on the line, the load on the line, or the line capacitance. The contact can be connected to a PA system, such as the Bosch Voice Alarm System, to detect and report faults on a loudspeaker line. Several EOL boards can be daisy-chained to a single fault input. This allows a loudspeaker line with several branches to be monitored. Since the background music also includes a 20 kHz pilot tone signal, there is no need to interrupt background music.
Main Features
- Pilot tone detection on 100 V loudspeaker lines
- Voltage free switch 200 V 1 A and LED indications of pilot tone
- Daisy chainable for monitoring multiple zones on a single input contact
- Fits on built-in mounts on selected Bosch loudspeakers
- EN 54‑16 certified
General Information
Name: Bosch PLN-1EOL End-of-Line Supervision Board
Category: Bosch, Pro AV, Commercial Audio, Pro Public Address Systems, ADI Pro Rewards
UPC Code: 800549134163
Country of Origin: China. Country of origin is subject to change.
Specifications
ADI Part Number UV-PLN1EOL Brand Name Bosch Manufacturer Bosch Manufacturer Part Number PLN-1EOL Packaged Quantity 6 Product Line Plena Product Model PLN-1MPEOL Product Name End-of-line Supervision Board Product Type End of Line (EOL) Supervision Board Weight 089lb
Status Indicators Yes
Depth 1-574" Width 2-362"
Input Voltage 100V
Country of Origin CN Package Contents - 6 x PLN-1EOL Plena End of Line Board
- 1 x Application note
