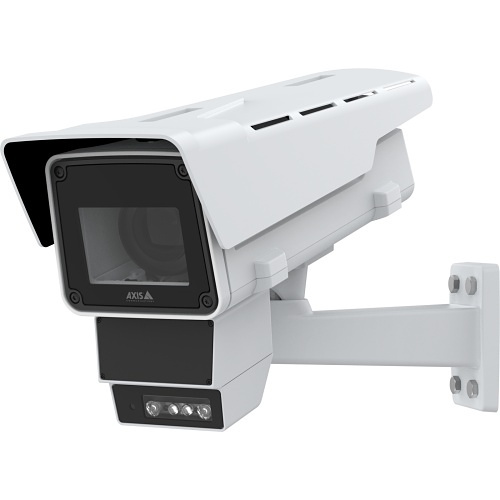

AXIS Q1686-DLE 4MP Radar-Video Fusion Camera, Monitor Traffic, 9-50mm Lens, White
Q1686-DLE|Z4-02968001
AXIS Q1686-DLE 4MP Radar-Video Fusion Camera, Monitor Traffic, 9-50mm Lens, White
Q1686-DLE|Z4-02968001
Axis Communications
AXIS Q1686-DLE 4MP Radar-Video Fusion Camera, Monitor Traffic, 9-50mm Lens, White
Q1686-DLE | Z4-02968001
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
AXIS Q1686-DLE uses a 60 GHz radar to monitor vehicle speeds up to 200 km/h (125 mph), 24/7. It can accurately track speed and direction with a minimum false alarm rate. Featuring a varifocal tele lens with 46°–9° horizontal FoV and traffic-optimized IR illumination kit, it can reliably identify an offending vehicle, 24/7. Built on an open platform, you can use AXIS Q1686-DLE with license plate recognition software to connect the speed and direction to a specific license plate. This enables reliable identification of a vehicle, on the edge – in the camera itself. Furthermore, it offers easy installation and configuration.
Main Features
- Axis Edge Vault safeguards the device
- Connect vehicle speed to a license plate
- Detect and identify wrong way driving
- Merge vehicle speed and license plate – on the edge
- Monitor speeds up to 200 km/h (125 mph)
- Monitor vehicle speeds up to 200 km/h (125 mph)
- Open platform for third-party software
- Radar tracking of speed and direction
- Reliable license plate capture and recognition 24/7
General Information
Name: AXIS Q1686-DLE 4MP Radar-Video Fusion Camera, Monitor Traffic, 9-50mm Lens, White
Category: Axis Communications, Video Surveillance, IP Cameras, Box Cameras
UPC Code: 7331021086913
Country of Origin: Poland. Country of origin is subject to change.
Specifications
ADI Part Number Z4-02968001 Brand Name AXIS Communications Manufacturer Part Number 02968-001 Product Name AXIS Q1686-DLE Product Type Fixed cameras; Radars Supported Network Protocols IPv6 USGv6|NIST SP500-267
Aperture f/1.5 Effective Camera Resolution 4MP Field of View Horizontal, Vertical Lens Mount Type i-CS Lens Type Varifocal Maximum Frame Rate 60fps Night Vision Yes
Image Sensor Type CMOS Wide Dynamic Range Yes
Ingress Protection Rating IP66
Image Sensor Size 1/1.8" Maximum Video Resolution 2688 x 1512
Operating Temperature (T-T) -40-104°F
Focal Length 9-50mm
Memory Card Supported Yes
Color White
Maximum Power Consumption 26W Power over Ethernet (PoE) Yes
Certifications CISPR 32 Class A, CISPR 35, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class B, ICES(B)/NMB(B), RCM AS/NZS CISPR 32 Class A Certifications & Standards ONVIF G, ONVIF M, ONVIF S, ONVIF T Environmental Certification IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 62262 IK08, ISO 21207 (Method B), NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9) Impact Protection Rating IK10 Indoor/Outdoor Outdoor
