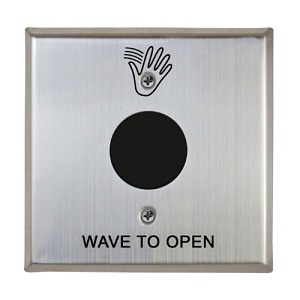

Camden CM-331/41SW Wired Touchless Switch with Built-in Door Control, Relay, Option for CM-TX99 Wireless Transmitter and Light Ring
Camden CM-331/41SW Wired Touchless Switch with Built-in Door Control, Relay, Option for CM-TX99 Wireless Transmitter and Light Ring
Camden CM-331/41SW Wired Touchless Switch with Built-in Door Control, Relay, Option for CM-TX99 Wireless Transmitter and Light Ring
CM-331/41SW | CM-33141SW
Please sign in to view pricing and availability and to add to cart.
Product Overview
The SureWave™ family of touchless switches by Camden lead the industry in performance, quality and value - with a range of features unmatched by any other on the market.
CM-331 touchless switches provide 'state of the art' door activation and control while eliminating the spread of germs.
These line powered touchless switches offer an adjustable operating range, selectable motion sensing and relay operating modes, hold open timer(s), REX and door position inputs, and the option for a light ring and wireless transmitter.
Main Features
- Wired,Wireless and hybrid (wirless/wired) models
- Indoor/outdoor use. -4ºF to +153ºF (-20ºC to +85ºC) operating temp. Gasket included in package
- Battery poweredWireless models offer 2 year battery life using standard'AA' alkaline batteries
- Line powered models offer 12/24V AC/DC operation
- 1 and 2 relay wired models, SPDT, Form 'C'
- Narrow (jamb), single and and double gang faceplates
- Polycarbonate (black) and stainless steel faceplates
- Advanced active infra-red technology with fast response
- Heavy duty 3 or 5 Amp rated relay
- Adjustable operating range up to 28" , refer to model specification
General Information
Specifications
ADI Part Number CM-33141SW Brand Name Camden Door Controls Manufacturer Camden Door Controls Manufacturer Part Number CM-331/41SW Product Line SureWave Product Model CM-331/41SW Product Name CM-331/41SW Touch-free Button Product Series CM-331 Product Type Touchless Weight 6.40oz
Gang Type Double Gang Material PC, Stainless Steel
Application/Usage Door, Indoor/Outdoor Color Black Depth 5.3" Durability Heavy Duty Height 2" Width 5.5"
Input Voltage 12V DC, 24V DC
Print/Message Wave To Open
Limited Warranty 3-Year
ADA Compliant Yes Compatibility CM-TX99 Wireless Transmitter Country of Origin CA Environmental Certification RoHS Environmentally Friendly Yes Features Infrared Receiver, Momentary On/Off Mode, Surface Mount, Time Delay Package Contents - CM-331/41SW Touch-free Button
- 2 x 'AA' Alkaline Batteries
